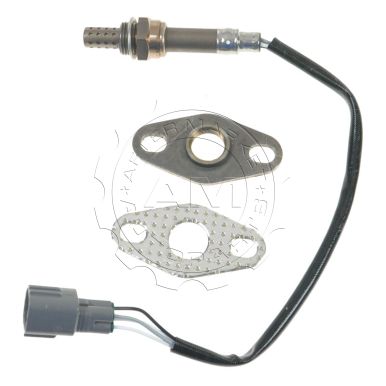

Chevy Toyota Lexus 4 Wheel Drive O2 Oxygen Sensor AM-11663492

List Price:$48.95
AM Price:$21.99
You Save:$26.96
Save 55%
Temporarily Out of Stock. Click the Notify Me button below to be notified when it is available.

Part Number: AM-11663492

Specifications:

  • Direct Fit
    • Correct Connector No cutting or splicing
    • Correct wire length (13.8 Inches)
  • Upstream Sensor as listed per applications
  • 2 bolt flange
  • Heated
  • 4 wire configuration
  • 4 terminal configuration
  • Replaces dealer part numbers: 94858615, 8946509200, 89465 09200
  • Built and tested to strict quality control standards

Note: For clarification purposes:

  • Upstream location is between the catalytic converter and the engine
  • Downstream location is between the catalytic converter and the tailpipe

Install Note:

You may be required to reset the vehicle computer after installation of this part.

Note:

Electrical and electronic parts are not eligible for a refund once installed or plugged in. In the event a manufacturing defect is found, the item may be eligible for an exchange.

Attention California Customers:

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

10 Year Warranty

This item is backed by a 10 Year Warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge (excludes shipping charges) for the original purchaser.

Please note: Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.

This part replaces:

  • Standard Motor Products SG470
  • OE # 94858615
  • OE # 8946509200
  • Walker Products Inc. 250-24154

Vehicle Fit

  • Chevy Prizm Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Lexus LX470 Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Lexus LX470 (Built Before 5/05 Production Date) Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota 4Runner V6 3.4L Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota 4Runner L4 2.7L Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota 4Runner V6 3.4L Federal Emissions Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota 4Runner L4 2.7L Federal Emissions Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Land Cruiser Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Pickup Short Bed L4 2.4L 4 Wheel Drive California Emissions (US Built Models) Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Pickup L4 2.4L Rear Wheel Drive California Emissions (US Built Models) Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Pickup V6 3.0L 4 Wheel Drive California Emissions Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Pickup V6 3.0L Rear Wheel Drive California Emissions Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Sequoia Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota T100 L4 2.7L Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota T100 L4 2.7L Automatic Transmission Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota T100 V6 3.4L Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota T100 4 Wheel Drive Manual Transmission Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota T100 V6 3.4L Automatic Transmission Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma L4 2.4L Automatic Transmission Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma V6 3.4L Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma L4 2.7L Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma L4 2.7L 4 Wheel Drive Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma L4 2.7L 4 Wheel Drive Federal Emissions Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma L4 2.4L Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma V6 3.4L Federal Emissions Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma V6 3.4L Federal Emissions Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tacoma L4 2.7L Federal Emissions Upstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tundra Downstream 4 Wheel Drive O2 Oxygen Sensor
  • Toyota Tundra V6 3.4L Federal Emissions Upstream 4 Wheel Drive O2 Oxygen Sensor
