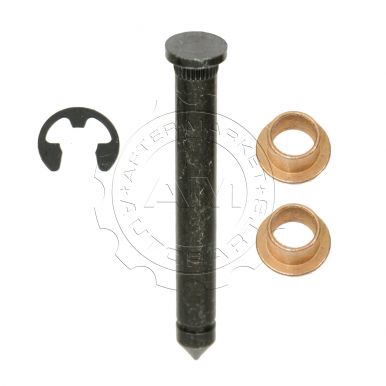

Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip) AM-39093342

AM Price:$10.80
Free Ground Shipping
Need this part fast? Choose Next Day Air at checkout!

Part Number: AM-39093342

Specifications:

  • Replaces the pin and bushings for the following door hinge locations and sides as listed per application:
    • LH (Driver Side) or RH (Passenger Side)
    • Upper or Lower door hinges unless specifically listed
  • Replaces dealer part numbers: D1AZ-6522841-A, 9721917, 9806723, D1AZ6522841A
  • Direct replacements
  • Built to strict quality control standards
  • Kit includes:
    • (1) Steel hardened pin
      • .340" x 2.83"
    • (2) Brass bushings
      • .345" ID x .420" OD x .305" Height
    • (1) 3/8" E-Clip

Note: This pin & bushing kit has enough parts to repair 1 door hinge. If you need to replace a pair, please see our other listings.

10 Year Warranty

Effective June 23, 2014: This item is backed by a 10 Year Warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge (excludes shipping charges) for the original purchaser.

Please note: Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.

This part replaces:

  • OE # 9806723
  • OE # 9721917
  • OE # D1AZ6522841A
  • Dorman 38391

Vehicle Fit

  • 1973-1975 Buick Apollo Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1970-1979 Buick Estate Wagon Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1965-1981 Buick LeSabre Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1968-1971 Buick Riviera Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1975-1979 Buick Skylark Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1968-1971 Cadillac Eldorado Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1967-1981 Chevy Caprice Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1968 Chevy Chevy II Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1968-1981 Chevy Impala Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1969-1979 Chevy Nova Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1971-1981 Olds Custom Cruiser Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1968-1981 Olds Delta 88 Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1973-1979 Olds Omega Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1968-1971 Olds Toronado Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1968-1981 Pontiac Catalina Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1971-1978 Pontiac Grand Safari Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1977-1979 Pontiac Phoenix Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
  • 1971-1977 Pontiac Ventura Door Hinge Pin & Bushing Kit (1 Pin, 2 Bushings, & 1 Clip)
