1994-05 Chevy Astro GMC Safari Door Hinge Pin & Bushing Kit AM-781009487

AM Price:$18.05
Temporarily Out of Stock. Click the Notify Me button below to be notified when it is available.

Part Number: AM-781009487

Specifications:

  • Fits LH (Driver Side) or RH (Passenger Side) Rear Cargo Door
  • Replaces dealer part numbers: 15536692, 15536693, 15598845
  • Direct replacements
  • Built to strict quality control standards

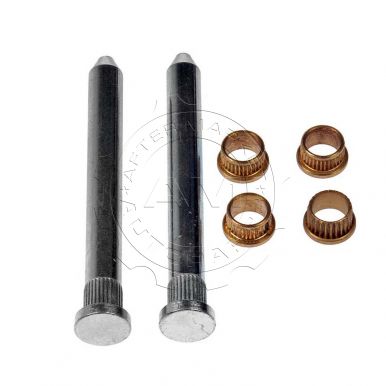

  • Kit includes:
    • (2) Steel Hardened Pins
      • 0.354" x 3.42"
    • (4) Bushings
      • (4) -0.342" ID x 0.511" OD x 0.271"

NOTE: This pin & bushing kit has enough parts to repair 1 door. If you need to replace a pair, please see our other listings.

10 Year Warranty

Effective June 23, 2014: This item is backed by a 10 Year Warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge (excludes shipping charges) for the original purchaser.

Please note: Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.

This part replaces:

  • OE # 15536693
  • OE # 15598845
  • OE # 15536692
  • Dorman 38469

Vehicle Fit

  • 1994-2005 Chevy Astro Rear Cargo Door Door Hinge Pin & Bushing Kit
  • 1994-2005 GMC Safari Rear Cargo Door Door Hinge Pin & Bushing Kit
