Dorman
List Price:$44.95
AM Price:$31.99
You Save:$12.96
Save 29%
Free Ground Shipping
Need this part fast? Choose Next Day Air at checkout!

Part Number: AM-44174081

Specifications:

  • Replaces the pin and bushings for the following door hinge locations and sides as listed per application:
    • LH (Driver Side) or RH (Passenger Side)
    • Upper or Lower door hinges unless specifically listed
  • Replaces dealer part numbers: 20046147, 20429500, 6271989
  • Direct replacements
  • Built to strict quality control standards

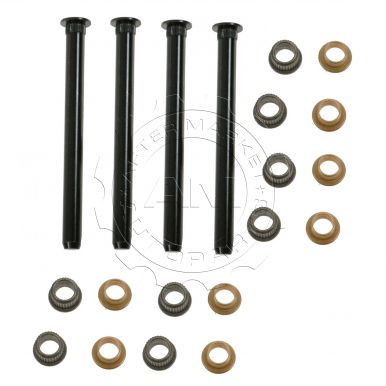

  • Each kit includes:
    • (1) Steel hardened pin
      • .342" x 4.167"
    • (2) Bushings
      • .344" ID x .370"OD x .295" Height
    • (2) Bushings
      • .344" ID x .420"OD x .305" Height

Note: These pin & bushing kit has enough parts to repair 4 door hinges. If you need to replace a single or a pair, please see our other listings.

FREE Shipping is standard on Orders shipped to the lower 48 States (Contiguous United States). Standard shipping charges apply to Hawaii, Alaska and US Territories.
Shipping is not available to Canada for this item.

Expedited is available on checkout to the United States, excluding Alaska, Hawaii and US Territories as well as P.O. Boxes and APO/FPO/DPO addresses.

Attention California Customers:

WARNING:  This product can expose you to chemicals including Chromium (Hexavalent Compounds), which is known to the State of California to cause cancer, and birth defects or other reproductive harm.  For more information, go to www.P65Warnings.ca.gov.

10 Year Warranty

This item is backed by our 10-year warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge. This warranty covers the cost of the part only.

Please note: Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.


Vehicle Fit

  • 1971-1973 Buick Centurion 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1981 Buick Century 4 Piece Door Hinge Pin & Bushing Kit
  • 1965-1989 Buick Electra 4 Piece Door Hinge Pin & Bushing Kit
  • 1970-1990 Buick Estate Wagon 4 Piece Door Hinge Pin & Bushing Kit
  • 1965-1985 Buick LeSabre 4 Piece Door Hinge Pin & Bushing Kit
  • 1974-1987 Buick Regal 4 Piece Door Hinge Pin & Bushing Kit
  • 1972-1985 Buick Riviera 4 Piece Door Hinge Pin & Bushing Kit
  • 1991-1996 Buick Roadmaster 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1972 Buick Skylark 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1969 Buick Special 4 Piece Door Hinge Pin & Bushing Kit
  • 1969-1972 Buick Sport Wagon 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1970 Buick Wildcat 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1985 Cadillac Brougham 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1976 Cadillac Calais 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1984 Cadillac Deville 4 Piece Door Hinge Pin & Bushing Kit
  • 1972-1985 Cadillac Eldorado 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1985 Cadillac Fleetwood 4 Piece Door Hinge Pin & Bushing Kit
  • 1976-1985 Cadillac Seville 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1973 Chevrolet Bel-Air 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1972 Chevrolet Biscayne 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1987 Chevrolet Blazer Full Size 4 Piece Door Hinge Pin & Bushing Kit
  • 1969-1972 Chevrolet Brookwood 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet C10 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet C20 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet C30 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1967-1996 Chevrolet Caprice 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1977 Chevrolet Chevelle 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1982 Chevrolet Corvette 4 Piece Door Hinge Pin & Bushing Kit
  • 1984-1992 Chevrolet Corvette 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1987 Chevrolet El Camino 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1985 Chevrolet Impala 4 Piece Door Hinge Pin & Bushing Kit
  • 1994-1996 Chevrolet Impala 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet K10 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet K20 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet K30 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1969-1972 Chevrolet Kingswood 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1976 Chevrolet Laguna 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1983 Chevrolet Malibu 4 Piece Door Hinge Pin & Bushing Kit
  • 1970-1988 Chevrolet Monte Carlo 4 Piece Door Hinge Pin & Bushing Kit
  • 1987 Chevrolet R1500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1989 Chevrolet R2500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 Chevrolet R3500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet Suburban C10 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet Suburban C20 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet Suburban K10 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 Chevrolet Suburban K20 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1988 Chevrolet Suburban R10 4 Piece Door Hinge Pin & Bushing Kit
  • 1989-1991 Chevrolet Suburban R1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1988 Chevrolet Suburban R20 4 Piece Door Hinge Pin & Bushing Kit
  • 1988-1991 Chevrolet Suburban R2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1988 Chevrolet Suburban V10 4 Piece Door Hinge Pin & Bushing Kit
  • 1989-1991 Chevrolet Suburban V1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1988 Chevrolet Suburban V20 4 Piece Door Hinge Pin & Bushing Kit
  • 1989-1991 Chevrolet Suburban V2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1969-1972 Chevrolet Townsman 4 Piece Door Hinge Pin & Bushing Kit
  • 1987 Chevrolet V1500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1989 Chevrolet V2500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 Chevrolet V3500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 GMC C1500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 GMC C2500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 GMC C3500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1978-1987 GMC Caballero 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1974 1973-74, 1979-84 GMC G1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1979-1984 1973-74, 1979-84 GMC G1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1974 1973-74, 1979-84 GMC G2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1979-1984 1973-74, 1979-84 GMC G2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1974 1973-74, 1979-84 GMC G3500 4 Piece Door Hinge Pin & Bushing Kit
  • 1979-1984 1973-74, 1979-84 GMC G3500 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1991 GMC Jimmy 4 Piece Door Hinge Pin & Bushing Kit
  • 1987 GMC R1500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1989 GMC R2500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 GMC R3500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1971-1977 GMC Sprint 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 GMC Suburban C1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 GMC Suburban C2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 GMC Suburban K1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1986 GMC Suburban K2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 GMC Suburban R1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 GMC Suburban R2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 GMC Suburban V1500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 GMC Suburban V2500 4 Piece Door Hinge Pin & Bushing Kit
  • 1987 GMC V1500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1989 GMC V2500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1991 GMC V3500 Truck 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1971 Olds 442 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1984 Olds 98 4 Piece Door Hinge Pin & Bushing Kit
  • 1978-1984 Olds Calais 4 Piece Door Hinge Pin & Bushing Kit
  • 1967-1987 Olds Cutlass 4 Piece Door Hinge Pin & Bushing Kit
  • 1978-1984 Olds Cutlass Calais 4 Piece Door Hinge Pin & Bushing Kit
  • 1978-1983 Olds Cutlass Cruiser 4 Piece Door Hinge Pin & Bushing Kit
  • 1975-1980 1975-80, 1985-87 Olds Cutlass Salon 4 Piece Door Hinge Pin & Bushing Kit
  • 1985-1987 1975-80, 1985-87 Olds Cutlass Salon 4 Piece Door Hinge Pin & Bushing Kit
  • 1967-1988 Olds Cutlass Supreme 4 Piece Door Hinge Pin & Bushing Kit
  • 1968 Olds Delmont 4 Piece Door Hinge Pin & Bushing Kit
  • 1968 Olds Delmont 88 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1972 Olds F85 4 Piece Door Hinge Pin & Bushing Kit
  • 1972-1985 Olds Toronado 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1977 Olds Vista Cruiser 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1986 Pontiac Bonneville 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1981 Pontiac Catalina 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1970 Pontiac Executive 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1971 Pontiac GTO 4 Piece Door Hinge Pin & Bushing Kit
  • 1973-1980 Pontiac Grand Am 4 Piece Door Hinge Pin & Bushing Kit
  • 1981-1987 Pontiac Grand Prix 4 Piece Door Hinge Pin & Bushing Kit
  • 1971-1978 Pontiac Grand Safari 4 Piece Door Hinge Pin & Bushing Kit
  • 1971-1975 Pontiac Grandville 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1981 Pontiac LeMans 4 Piece Door Hinge Pin & Bushing Kit
  • 1983-1986 Pontiac Parisienne 4 Piece Door Hinge Pin & Bushing Kit
  • 1969 Pontiac Safari 4 Piece Door Hinge Pin & Bushing Kit
  • 1987-1989 Pontiac Safari 4 Piece Door Hinge Pin & Bushing Kit
  • 1968-1970 Pontiac Tempest 4 Piece Door Hinge Pin & Bushing Kit
