1993-02 Chevy Camaro Pontiac Firebird Door Hinge Pin & Bushing Kit (4 Pins, 4 Bushings, & 4 Lock Nuts) AM-2439566417

List Price:$23.81
AM Price:$16.90
You Save:$6.91
Save 29%
Free Ground Shipping
Need this part fast? Choose Next Day Air at checkout!

Part Number: AM-2439566417

Specifications:

  • Fits LH (Driver Side) or RH (Passenger Side)
  • Fits Upper or Lower Door Hinges unless specifically listed
  • Direct replacements
  • Built to strict quality control standards

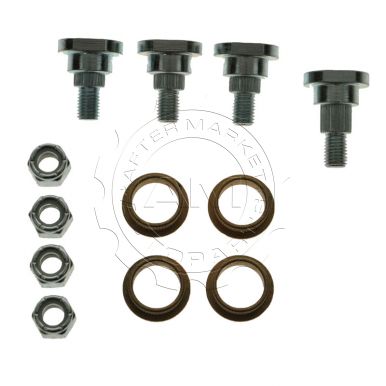

  • Kit includes:
    • (4) Hinge Pins
      • (2) - 0.584" x 1.03"
      • (1) - 0.405" x 1.011"
      • (1) - 0.405" x 1.20"
    • (4) Brass Bushings
      • (4) - 0.866"ID x 0.590"OD x 0.248"
    • (4) Nylon Insert Lock Nuts
      • (4) - 5/16"-24

10 Year Warranty

Effective June 23, 2014: This item is backed by a 10 Year Warranty. In the event this item should fail due to manufacturing defects during intended use, we will replace the part free of charge (excludes shipping charges) for the original purchaser.

Please note: Any modifications to an item of any kind before contacting us will void any and all warranty coverage for this item. Please contact us before modifying the part so that we have the opportunity to correct the situation.

This part replaces:

  • OE # 20058035, 20262500, 20300149, 16630874, 16630875, 16631042, 16631043
  • Dorman 38493
  • Hollander

Vehicle Fit

  • 1993-2002 Chevy Camaro Door Hinge Pin & Bushing Kit (4 Pins, 4 Bushings, & 4 Lock Nuts)
  • 1993-2002 Pontiac Firebird Door Hinge Pin & Bushing Kit (4 Pins, 4 Bushings, & 4 Lock Nuts)
